EGODRIFT Eclipse: Unleash the Beast! 465kV Brushless Powerhouse. Scale Collection Ready!
Alright buckle up buttercup because this ain't your grandma's description. Get ready to unleash your inner rebel with this bad boy. We're talking next level awesome. This isn't just a thing it's a statement a vibe a whole darn mood. Seriously though you need this in your life. It's like a party for your senses a symphony of pure unadulterated awesome. Don't be a square buy this and become a legend. You know you want to. Don't even try to resist.

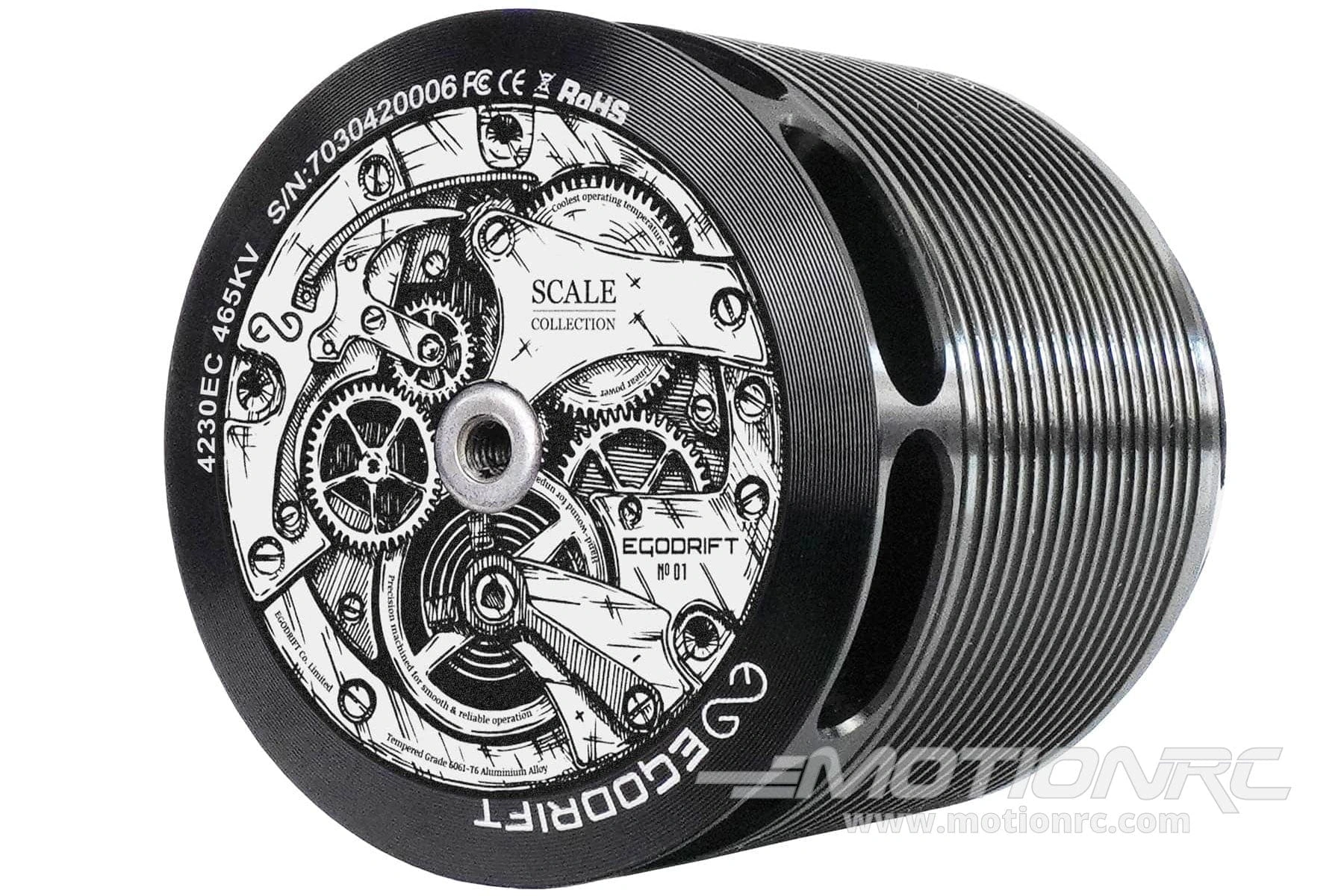

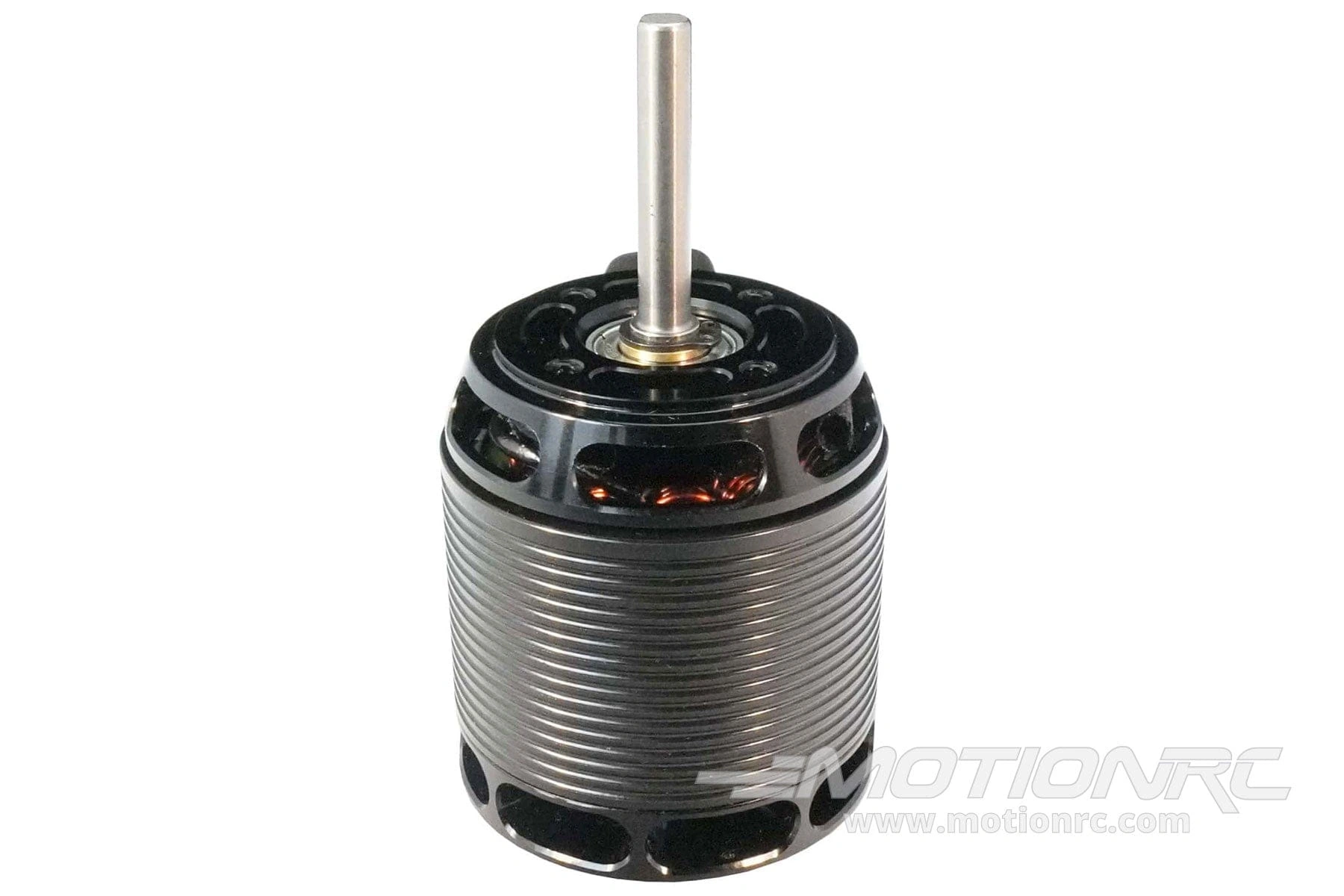

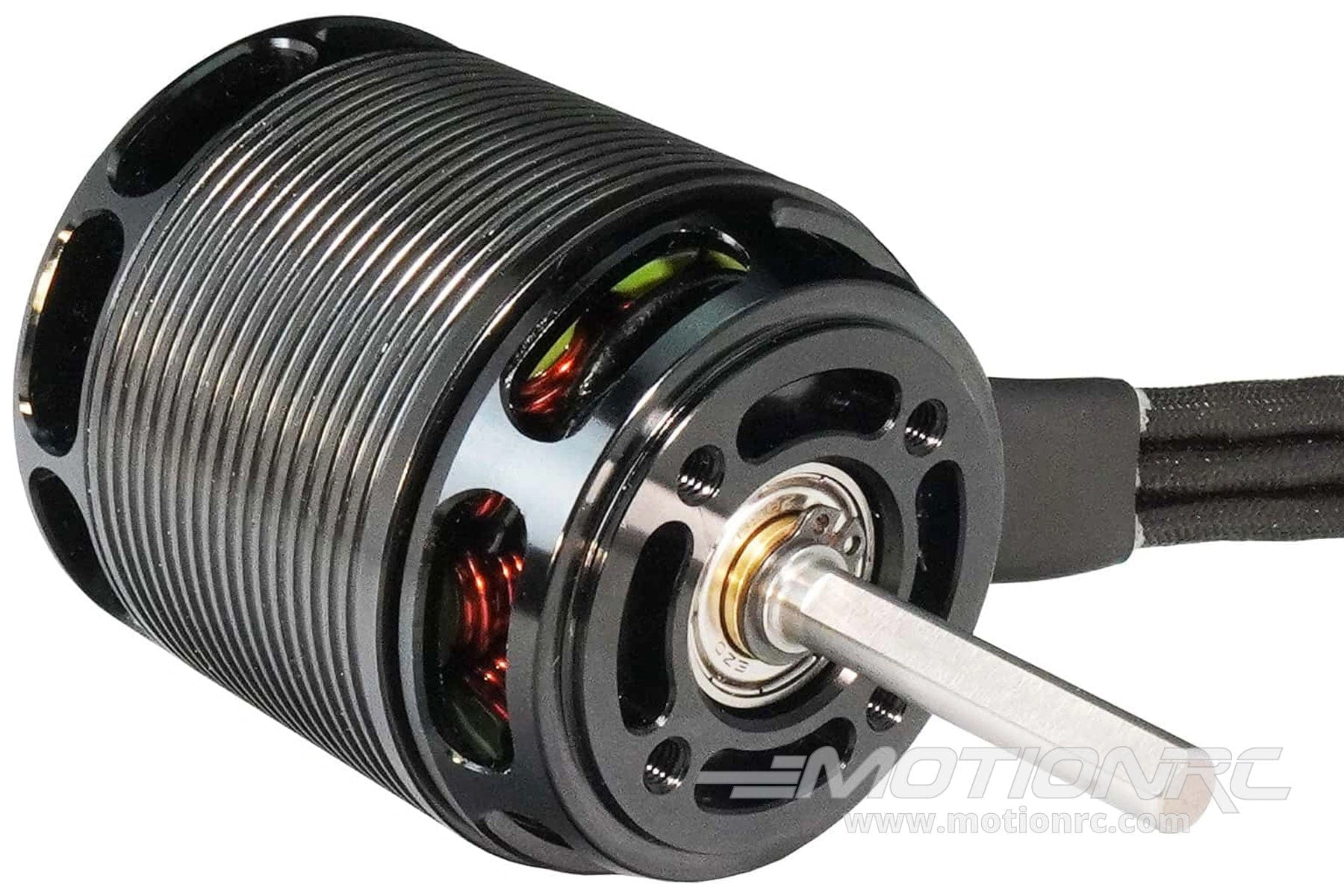

Scale Collection 4230EC Eclipse 4230-465kV Brushless Motor from EGODRIFT - EGO11959
EGODRIFT Brushless Outrunner Motors are recognized as the top choice for radio controlled (RC) helicopter models. Known for their exceptional performance and reliability, these motors cater to a diverse range of flight enthusiasts who demand top quality in their hobby. With a variety of stator sizes and kV versions available, EGODRIFT provides options that allow users to select the ideal motor for their specific RC helicopter needs.
Introducing the Scale Collection 4230EC (Eclipse) Motors. Engineered around EGODRIFT’s innovative custom stator design, the 4230EC models deliver exceptional performance and efficient, cool-running operation. These versatile motors are tailored for a variety of applications.
Lightweight Agility
The 4230EC is well-suited for light to ultra-light 700-class helicopters like the SAB Piuma, Tron DNamic, and Oxy Flash. The compact 4230 frame size and custom stator combine power and efficiency for an optimal power-to-weight ratio.
Scale Precision
For 700-800 size scale builds, including the popular Roban HSM-800, the 4230EC provides the stable, smooth power delivery and thermal management required for scale projects. Available in 465kV and 520kV options with a sleek scale-inspired design.
Competition-Ready
F3C pilots will find the 4230EC a compelling middle ground between the traditionally used 4035 and 4525 motor sizes. It blends the power characteristics of the 4035 with the efficient, cool operation of the larger 4525.
Performance Versatility
Enthusiasts building in the 580-610 size range will also appreciate the 4230EC's performance capabilities. It pairs well with models like the Kraken, Raw 580, Miniature Aircraft Interceptor E 600, and Soxos 6.1.
ESC recommendation
While the requirement will vary based on your specific application, we generally recommend a 130A to 135A ESC or higher for most applications.
Industry Standard Mounting Pattern 4xM4(30mm) mounting pattern fits a wide range of RC helicopter models (including Roban HSM-800 platform). |
Scale Collection Graphics The unique Scale Collection graphics give this motor a distinct appearance that will blend well with your custom build. |
Features:
- EGODRIFT custom-designed 42mm stator for optimal power, efficiency, and thermal management
- Ideal for light to ultra-light 700-size helicopters, scale builds (including Roban HSM-800), F3C competition, and 580-610 size performance builds
- 12N10P motor configuration delivers impressive thrust-to-weight ratio
- Hardened steel motor shaft for durability
- Gold-plated bullet connectors for reliable connections
- 4xM4 mounting pattern fits a wide range of helicopter models
- 36mm external shaft length provides compatibility with existing setups
- Available in both 520kV and 465kV versions for scale-oriented performance (see 520kV version here)
- Backed by EGODRIFT's commitment to quality and innovation

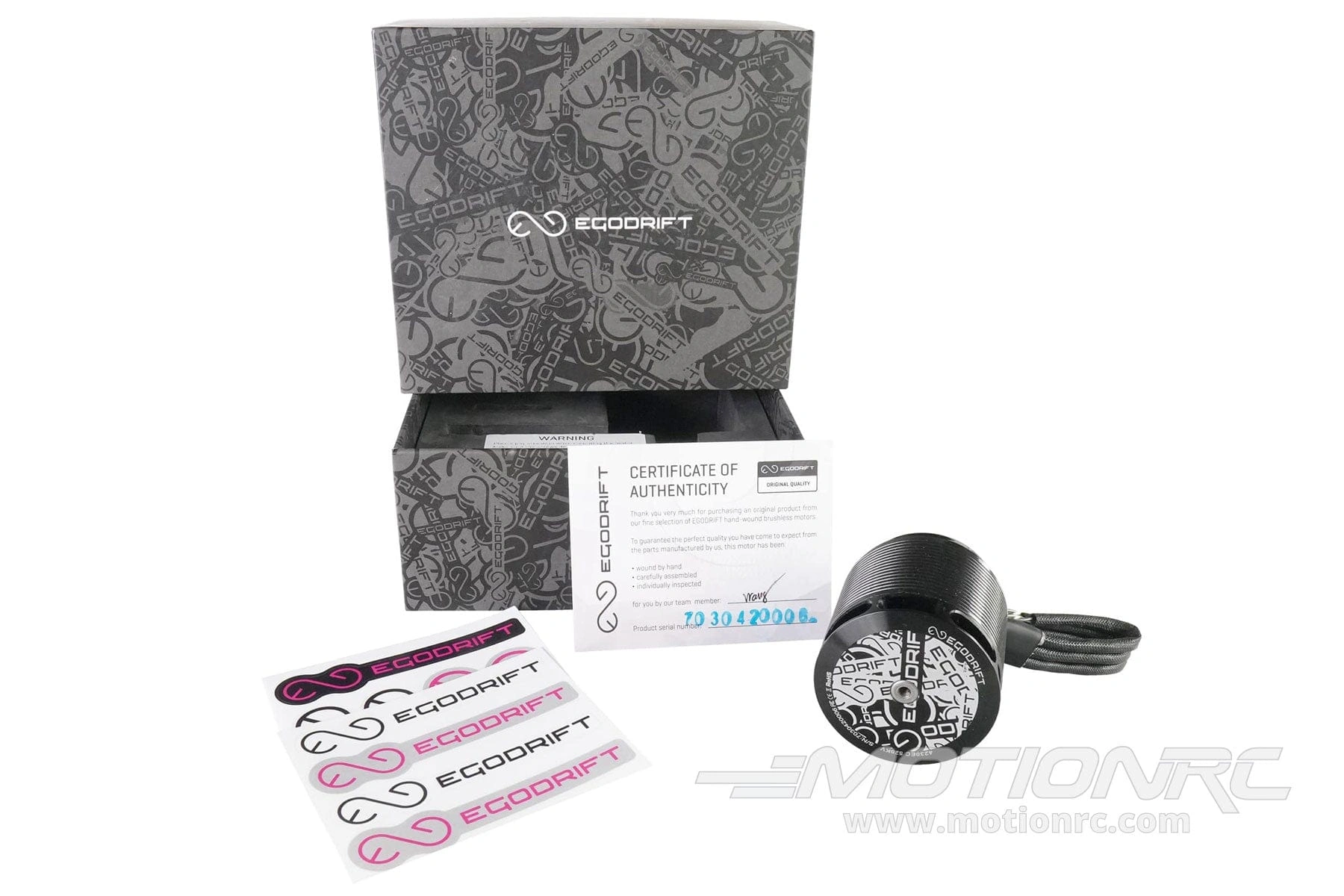

Includes:
- EGODRIFT Scale Collection 4230EC Eclipse 4230-465kV Brushless Motor
- 3x male/female gold-plated bullet connectors
- 4x M4 mounting screws
- 2x EGODRIFT decal sheets
- Certificate of authenticity
Requires:
- Please review the specification table at the bottom of this page for battery, ESC and other recommendations that will work best for this motor
