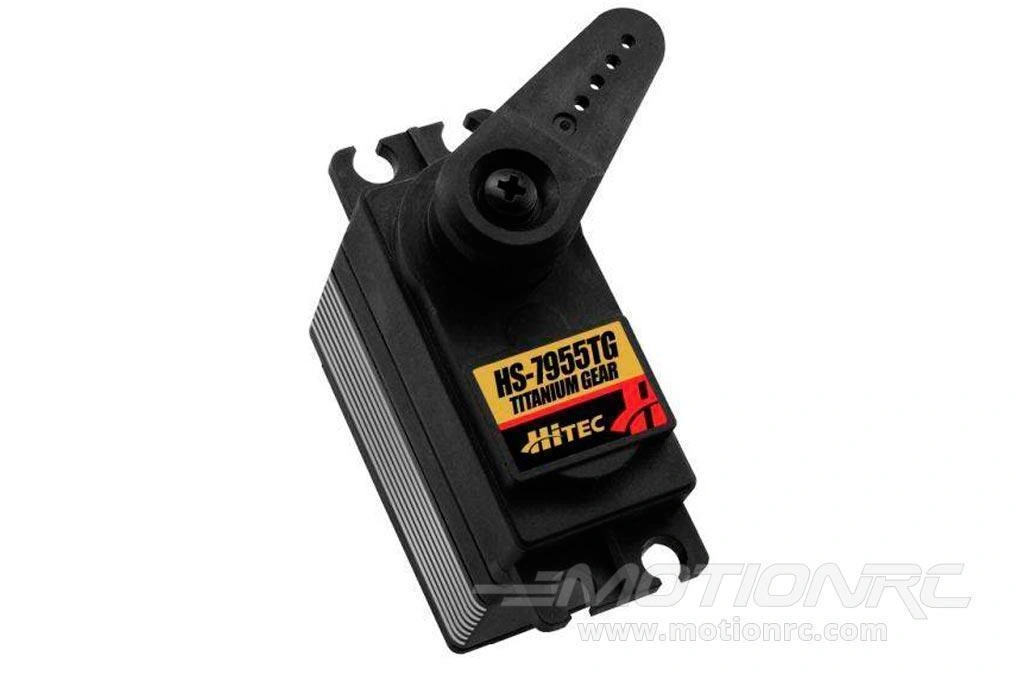

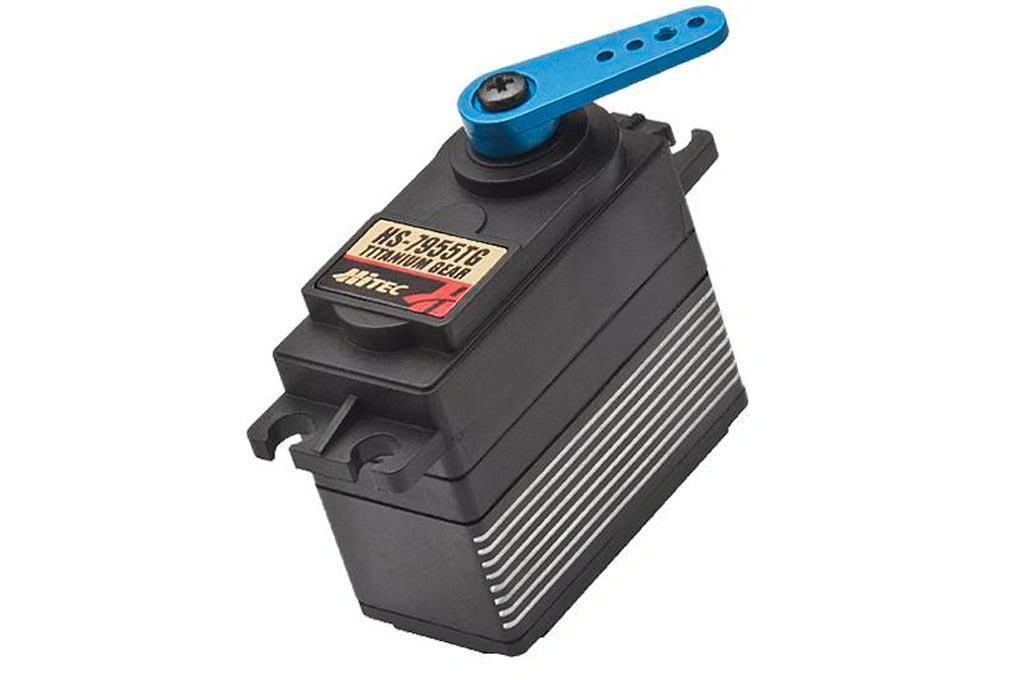

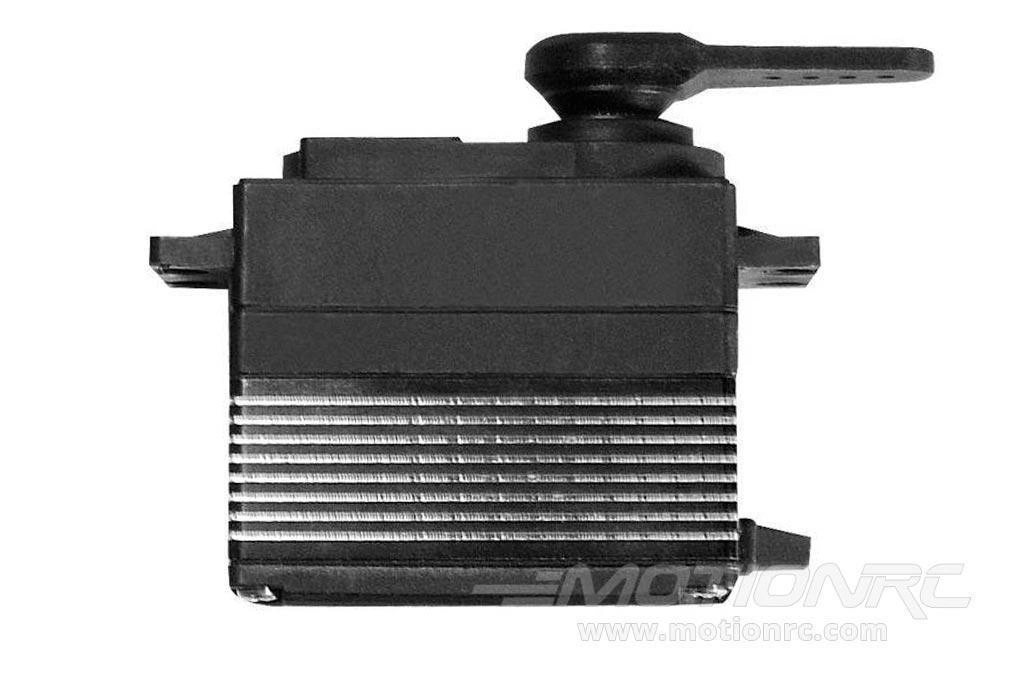

HS-7955TG High Torque Ball Bearing Titanium Gear Digital Standard Servo from Hitec - HRC37955S
Based on the powerhouse HS-5955TG servo the HS-7955TG has the added benefit of Hitec's G2 second generation programmable digital circuit. This new circuit has twice the resolution of our original circuit while adding programmable overload protection. The HS-7955TG has been designed for the most demanding hobby applications including the largest aircraft. Featuring a titanic 333 oz.-in. of torque at 6.0 volts, all this power is harnessed by incorporating the industries first Titanium gears for incredible wear resistance and two strong hardened steel gear pins and axial brass bushing in the servo case.
What is a coreless motor?
A conventional servo motor has a steel core armature wrapped with wire that spins inside the magnets. In a coreless design, the armature uses a wire mesh that forms a cup that spins around the outside of the magnet. This arrangement is much lighter resulting in smoother operation and faster response time.
Features:
- Titanium gears for much longer life than conventional metal gears
- Fully programmable digital technology
- Dual ball bearing supported output shaft
- Coreless motor for precise centering and accuracy
- G2 programmable digital circuit
Includes:
- 1x HS-7955TG high torque digital titanium gear standard servo with universal connector
- 1x 2' servo arm
- 1x Blue anodized aluminum 1' servo arm
- 1x Heavy duty 1-1/2' servo arm
- 1x Heavy duty 2-3/4' servo arm
- 1x Black disc servo horn
- 4x 2 x 14mm mounting screws
- 4x brass eyelets
- 4x black rubber vibration isolators
- 1x Plastic case and programming instruction sheet
- Hitec decals
Programmable features:
- Dead band width
- Direction of rotation
- Speed of rotation (slower)
- End points
- Neutral points
- Fail safe On/Off
- Fail safe point
- Resolution* (default is high resolution)
- Overload protection* (default is off)
- (*these features are only programmable with the HFP-20 field programmer)
