Futaba 16SZ: Unleash Your Inner Ace with Precision Control & Top-Tier RC Performance!
Alright listen up, because you're about to discover something seriously epic. This isn't just a thing, it's a vibe. A whole lotta attitude, rolled into one killer package. Maybe it's got that rugged, just-rode-a-motorcycle kinda feel. Or maybe it's the sophisticated, "I-know-where-the-best-cocktails-are" look. Whatever it is, trust me, you need this in your life. It’s the missing piece, the thing that’ll take your game to the next level. So ditch the ordinary, embrace the extraordinary. Get this now. You won't regret it.

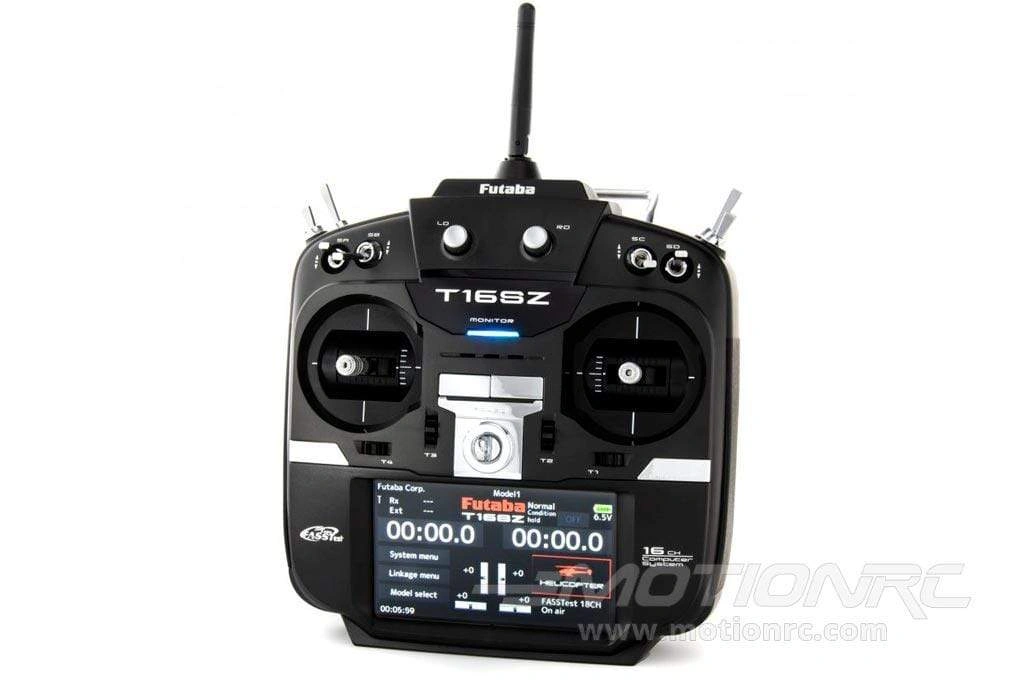

16SZ 16-Channel Transmitter with R7008SB Receiver from Futaba - FUTK9460
Immerse Yourself In The World of 16 Channel Capability
If you want a radio system that can handle any challenge, step up to the 16SZ. It’s compatible with all of the popular protocols: FASSTest, FASST, S-FHSS and T-FHSS. It has a large 4.3' LCD touch screen. Programming is easy and intuitive, for airplanes, helis, gliders and drones. All this plus a high-voltage S.Bus2 receiver, the convenience of 30-model memory, and much, much more.
The Power of 2.4GHz The 16SZ utilizes modern 2.4GHz signal transmission and reception technology that delivers incredible reliability and unparalleled signal strength. |
74 Years of Service and Counting Futaba was founded in Japan in 1948. With over 5,000 international employees and hundreds of thousands of products delivered across generations, Futaba remains leaders in RC technology and products. Fly only the best with Futaba! |
Features:
- 16 proportional channels, 2 switched
- Compatible with:
- FASSTest, FASST, S-FHSS and T-FHSS protocols
- Futaba HV (High-Voltage) receivers
- All Futaba telemetry sensors
- Free online software upgrades
- 4.3' LCD touch screen
- 30-model memory
- 15-character user and model naming
- Sub trims (240 steps)
- Servo reversing
- Trim settings (adjustable step, rate & mode)
- Servo speed adjustment
- AFR/DR
- AFR curve mode (3)
- AFR curve point (17 points)
- Idle down
- Logic switch
- Full flight condition
- 10 programmable mixes
- Throttle cut
- S.Bus servo programming editor
- High-voltage R7008SB receiver
- Swash and throttle mixing
- V-tail mixing
- End point adjustment
- Adjustable servo speed
- 8 flight conditions
- 3-axis gyro support
- Micro memory card slot
- Voice message/audio earphone jack
- Up/down integral timer (2)
- Throttle timer
- Lap timer/memory
- Battery fail safe
- Stick calibration
- Eight toggle switches
- Two assignable front dials
- Four assignable trim levers
- Two assignable side levers
- 6.0V NiMH rechargeable battery
- Trainer S.Bus port
- Vibration alert
- 180° antenna rotation and 90° angle adjustment
- Multi language (9 languages)
Airplane Features:
- 13 wing types
- 3 tail types
- 2 rudder types
- Flap setting
- Aileron differential
- Aileron to camber flap mix
- Aileron to brake flap mix
- Aileron to rudder mix
- Airbrake to elevator mix
- Rudder to aileron mix
- Rudder to elevator mix
- Camber mix
- Elevator to camber mix
- Snap roll
- Airbrake mix
- V-tail
- Ailevator
- Winglet
- Motor mix
- Multi-engine
- Gyro sensor
Helicopter Features:
- 8 swash types
- Pitch/throttle curve
- Pitch/throttle curve mode (3)
- 17 point pitch/throttle curve
- Acceleration
- Throttle hold
- Swash mixing
- Throttle mixing
- Pitch to needle mixing
- Pitch to rudder mixing
- Gyro sensor (3)
- Governor
- Condition hold
- Hovering pitch
- Hovering throttle
- Swash AFR
- Swash setting
- Swash ring
- Throttle limiter
Glider Features:
- 13 wing types
- 3 tail types
- 2 rudder types
- Flap setting
- Aileron differential
- Aileron to camber flap mix
- Aileron to brake flap mix
- Aileron to rudder mix
- Rudder to aileron mix
- Airbrake to elevator mix
- Camber mix
- Elevator to camber mix
- Camber flap to elevator mix
- Butterfly mixing
- Butterfly to elevator
- Trim mix 1
- Trim mix 2
- V-tail
- Ailevator
- Winglet
- Motor mix
Multicopter Features:
- Gyro
Telemetry Functions:
- Receiver battery
- Temperature
- RPM (magnetic and optic)
- Altitude
- GPS
- Voltage
- Current
- Servo
- Voice (English, German, Japanese, French)
- Data logging
Includes:
- Futaba 16SZ 16-Channel Transmitter
- R7008SB 8 CH Receiver
Requires:
- Four (4) AA size batteries – we recommend Admiral NiMH AA Rechargeable Batteries (4 Pack)
Optional:
- 6V NiMH or 6.6V LiFe batteries
The 16SZ offers quick access to all four protocols: FASST, FASSTest, S-FHSS and T-FHSS. | |
The high-voltage R7008SB receiver offers you a number of servo and channel choices. Use up to 8 channels with standard PWM outputs, or up to 18 channels (16 proportional + 2 switched) with S.Bus and S.Bus2 outputs. |
